Bridge

Front / Recto

Title Bridge (Brücke)
Negative Date 1929
Print Date 1929–39
Medium Gelatin silver print
Dimensions Image 6 1/2 × 8 3/4" (16.5 × 22.3 cm)
Sheet 6 3/4 × 9" (17.1 × 22.8 cm)
Place Taken Cologne
Credit Line Thomas Walther Collection. Abbott-Levy Collection funds, by exchange
MoMA Accession Number 1781.2001
Copyright © 2015 / Artists Rights Society (ARS), New York / VG Bild-Kunst, Germany

Mount Type No mount
Marks and Inscriptions Inscribed in pencil on sheet verso, top right: Brücke 1929. Inscribed in pencil on sheet verso, center: 22,3 x 16,5. Inscribed in pencil on sheet verso, bottom left: 1929. Signed in pencil on sheet verso, bottom right: W. Mantz. Inscribed in pencil on sheet verso, bottom right: TW 770701.
Provenance The artist, Maastricht/Eijsden, the Netherlands; to Galerie Rudolf Kicken, Cologne, 1976–July 1977 [1]; purchased by Thomas Walther [2]; purchased by The Museum of Modern Art, New York, 2001.
[1] MacGill/Walther 2001(3), p. 14; and Ina Schmidt-Runke (Kicken Berlin), e-mail to Maria Morris Hambourg, November 13, 2013.
[2] MacGill/Walther 2001(3), p. 14.

Surface Sheen Semireflective
Techniques Retouching (additive)
Retouching in negative
PTM

Detail view of the recto of the artwork made using reflectance transformation imaging (RTI) software, which exaggerates subtle surface details and renders the features of the artwork plainly visible. Department of Conservation, MoMA
Micro-raking

Raking-light close-up image, as shot. Area of detail is 6.7 x 6.7 mm. Department of Conservation, MoMA

Raking-light close-up image, processed. Processing included removal of color, equalization of the histogram, and sharpening, all designed to enhance visual comparison. Department of Conservation, MoMA

Format Metric
Weight Double weight
Thickness (mm) 0.30
UV Fluorescence Recto negative
Verso negative
Fiber Analysis Softwood bleached sulfite 98%
Hardwood bleached sulfite 2%
Rag 1%
Material Techniques Developing-out paper
XRF
This work was determined to be a gelatin silver print via X-ray fluorescence (XRF) spectrometry.

The following elements have been positively identified in the work, through XRF readings taken from its recto and verso (or from the mount, where the verso was not accessible):
- Recto: P, S, Cl, Ca, Zn, Sr, Ag, Ba
- Verso: Al, Si, S, K, Ca, Fe, Zn, Sr, Ba
The graphs below show XRF spectra for three areas on the print: two of the recto—from areas of maximum and minimum image density (Dmax and Dmin)—and one of the verso or mount. The background spectrum represents the contribution of the XRF instrument itself. The first graph shows elements identified through the presence of their characteristic peaks in the lower energy range (0 to 8 keV). The second graph shows elements identified through the presence of their characteristic peaks in the higher energy range (8 to 40 keV).

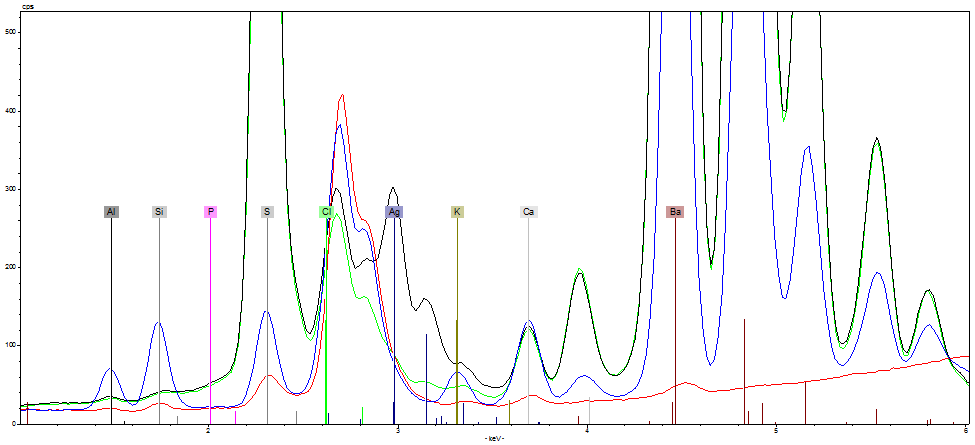

Areas examined: Recto (Dmax: black; Dmin: green), Verso or Mount (blue), Background (red)
Elements identified: Al, Si, P, Cl, S, K, Ca, Ag, Ba

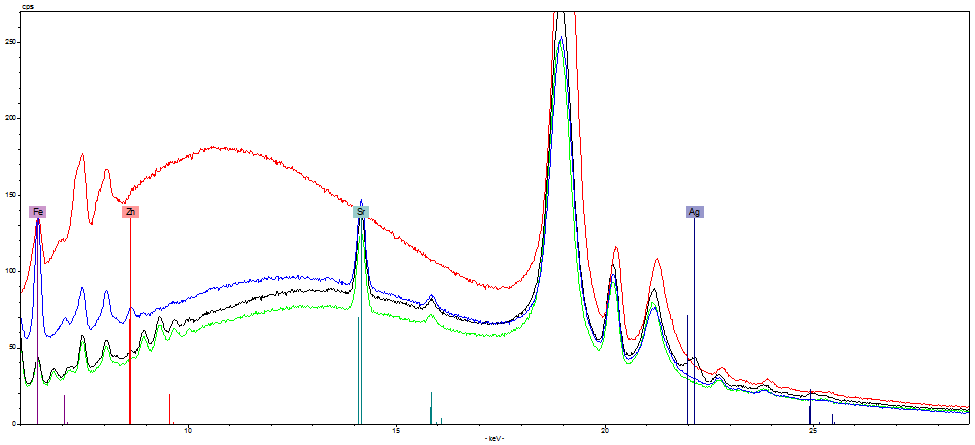

Areas examined: Recto (Dmax: black; Dmin: green), Verso or Mount (blue), Background (red)
Elements identified: Fe, Zn, Sr, Ag
